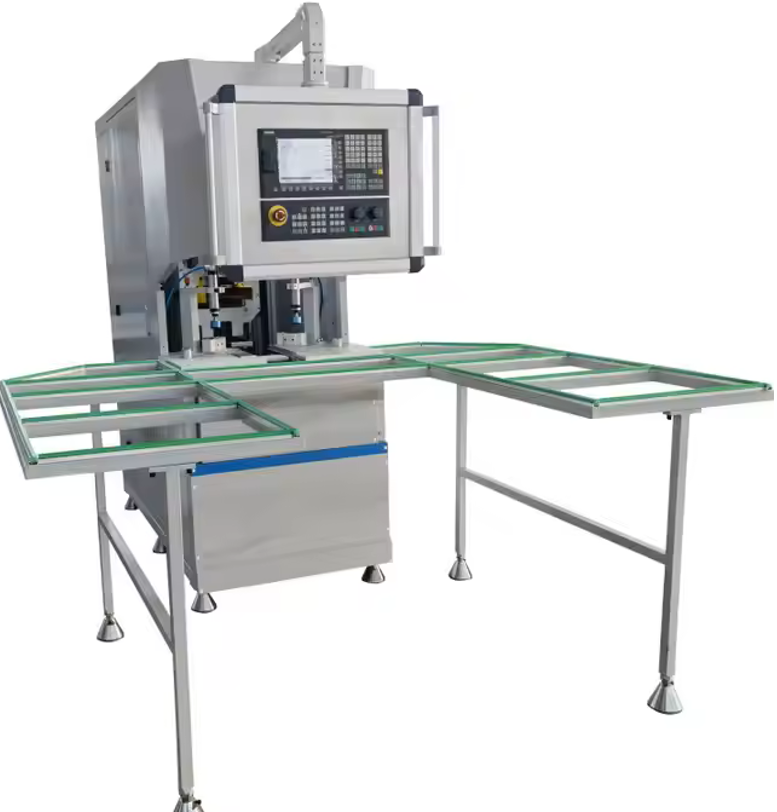

CNC ΚΑΘΑΡΗΣΤΙΚΗ

1). Adopt famous international brand name servo CNC system.

2). The saw blade milling cutter adopts spindle motor, and the upper and lower weld seam cleaning adopts saw blade type. It is equipped with 9 sets of cutters, which can realize the upper/lower plane, outer facade, upper/lower rubber strip groove, and upper/lower inner corner of the window. Quick cleaning of inclined surfaces and direct surfaces of glass troughs.

3). USB interface can realize rapid copying of multiple programs, handheld remote control can realize manual teaching programming and automatic programming.

4). It can realize arc interpolation and linear interpolation, and can store the processing programs of thousands of profiles. It is an essential equipment for large door and window enterprises to carry out corner joint cleaning in multiple varieties and in large quantities.

5). The cutters are all driven by CNC axes, and the upper and lower flat peak knives can work at the same time to ensure the beauty of the weld seam cleaning. At the same time, the flat seam depth can be adjusted according to customer needs.

6).The maximum height of the window can be cleaned up to 130mm. Other model only is 110-120mm

7). Equipped with saw dust collection device to reduce the splash of processing debris.

8). Equipped with a chip collection box for clean processing and easy cleaning.

9). The new professional-grade industrial appearance design brings you a new visual experience while

Input Power 5Kw

Input Voltage 380V 50Hz/220V 60Hz

Air Pressure 0.6-0.8Mpa

Saw blade Diameter φ230mm×φ30mm RPM 3000r/min

Processing Profile Width 30-120mm

Processing Profile Height 30-130mm

Overall Dimension 2000*2980*1900mm

Weight 700Kg
